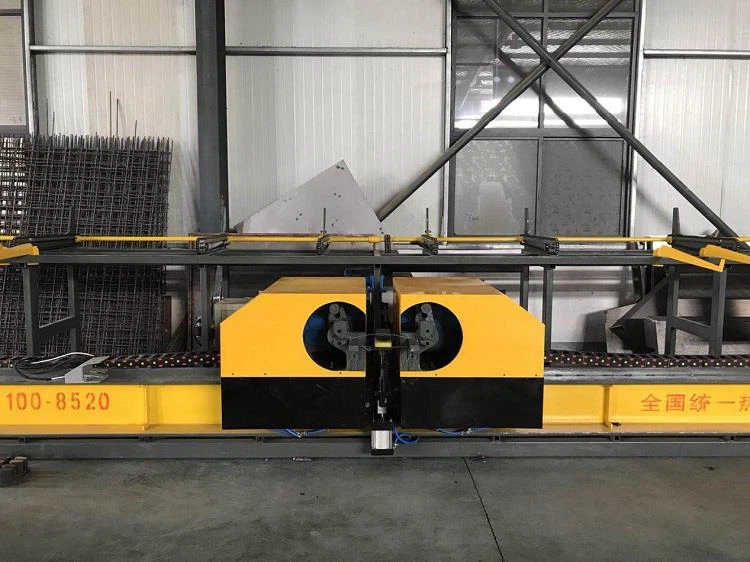

G2L32B CNC Rebar Bending Center
The equipment has the advantages of simple operation and convenient and economical operation. It is especially suitable for all kinds of engineering tenders and steel refineries.
G2L32B CNC Rebar Bending Center Description
The equipment is simple to operate, convenient, and economical. It is especially suitable for various project bidding and steelmaking plants. CNC bending center is a necessary steel processing facility for the country to promote standardization of steel processing. At present, it has been vigorously promoted in steel structure construction projects such as domestic highway construction, high-speed rail construction, intercity railway construction, and subway light rail construction. The bending center of the Minato machine head structure processes a variety of steel materials and has independent intellectual property rights. The movement of the elbow is driven by a servo motorThe head movement response is fast and the positioning accuracy is high. The bending motor adopts frequency conversion technology for high steel processing precision, energy-saving, and high efficiency, and it can also bend various steel bars. The bracket and the curved platform rail of the fuselage have a high-strength moving rail, which is sturdy and durable, and not easily deformed. A high-strength automatic storage rack can realize continuous production
Main Feature:
- The complete machine frame is welded with thick steel plates, featuring high structural rigidity and resistance to deformation during long-time continuous operation.
- Pneumatic clamping mechanism eliminates the risk of hydraulic oil leakage, with stable clamping performance and lower failure rate.
- Dustproof protection design for the electric cabinet ensures stable operation under harsh working environments with heavy dust and large temperature differences.
- Equipped with an industrial touch control panel, it has a clear human-machine interface for intuitive and simple operation, lowering the learning threshold.
- Variable frequency control is applied to the main bending shaft for high bending precision.
- High-strength moving guide rails for long service life.
| TECH PARAMETER | ||||||
| Model | G2L32A | G2L32B | G2L32C | |||
| Diameter of steel bar | Bending angle | Diameter of steel bar | Bending angle | Diameter of steel bar | Bending angle | |
| Capacity | Φ6-Φ32 | +180°、-120° +90°、-90° | Φ6-Φ32 | +180°、-120° +90°、-90° | Φ6-Φ32 | +180°、-120° +90°、-90° |
| Main bender speed | 0.6 m/s | 0.6 m/s | 0.6 m/s | |||
| Bending speed | 60°/s | 60°/s | 60°/s | |||
| Bending error | ±1 mm/m | ±1 mm/m | ±1 mm/m | |||
| Min axis spacing | 470mm | 490 mm | 490 mm | |||
| Power | 19.5 kW | 16.2 kW | 16.2 kW | |||
| Overall dimensions | 13.5×2.15×1.6 m | 12.5*2.15*1.6m | 12.5*2.15*1.6m | |||
| Weight | 5T | 3.8T | 3.8T | |||
Vertical Rebar Bending Center FAQ
Q: What are the daily maintenance items and their cycles?
A: Daily: Clear iron scraps and dust; inspect emergency stop and safety protections; lubricate bending shafts; check air pressure.
Weekly: Inspect all fastening bolts, lubricate guide rails, and check air pipe fittings for air leakage.
Monthly: Check the temperature of servo motors and reducers; inspect encoder wiring; tighten terminal blocks.
Quarterly: Replace reducer lubricating oil, and test the wear condition of limit switches.
Long-term shutdown: Clean the whole machine, cover for dust prevention, cut off power supply, and release air cylinder pressure.
