Automatic Rebar Cage Welding Machine: The Complete Guide for 2026

This guide covers CNC rebar cage welding machines for construction contractors, civil engineers, precast concrete manufacturers, pile foundation specialists, bridge builders, and tunnel contractors. If you build with reinforced concrete, this is for you.

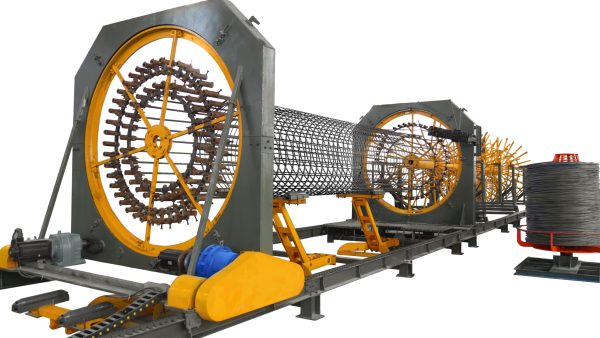

1. What Is an Automatic Rebar Cage Welding Machine?

An automatic rebar cage welding machine — also called a CNC steel bar cage welding machine, rebar cage forming machine, or reinforcement cage building machine — is a motorized, computer-controlled system that simultaneously feeds, positions, winds, and welds steel reinforcement bars (rebar) into cylindrical reinforcement cages. These cages are the skeletal core of reinforced concrete piles, columns, bridge piers, tunnel lining segments, and foundation shafts.

The machine replaces a process that was previously performed entirely by hand: manually arranging main longitudinal bars in a template jig, hand-winding helical stirrup wire around them, and spot-welding each intersection one by one. In a manual operation, a team of four to six workers can build one cage in several hours. An automatic rebar cage welding machine builds the same cage — more accurately — in a fraction of that time.

What ‘Automatic’ Actually Means Here

The word automatic is doing real work in this context. On the HNYC-1500 CNC machine from Henan Xinyuchuang Machinery, automation covers:

• Feeding: Wire stock is fed at up to 85 m/min with ±1 mm precision — no human measurement required
• Rotation: The main bar template ring rotates mechanically, winding the stirrup wire evenly around all longitudinal bars
• Welding: The machine welds each stirrup-to-main-bar intersection as it goes, eliminating the need for manual spot welding
• Spacing control: Stirrup spacing is set digitally on the touch-screen HMI and maintained consistently for the full cage length
• Length control: The machine runs to the programmed cage length and stops — no manual measuring

The operator’s role shifts from manual fabrication to machine supervision, programme entry, and quality monitoring.

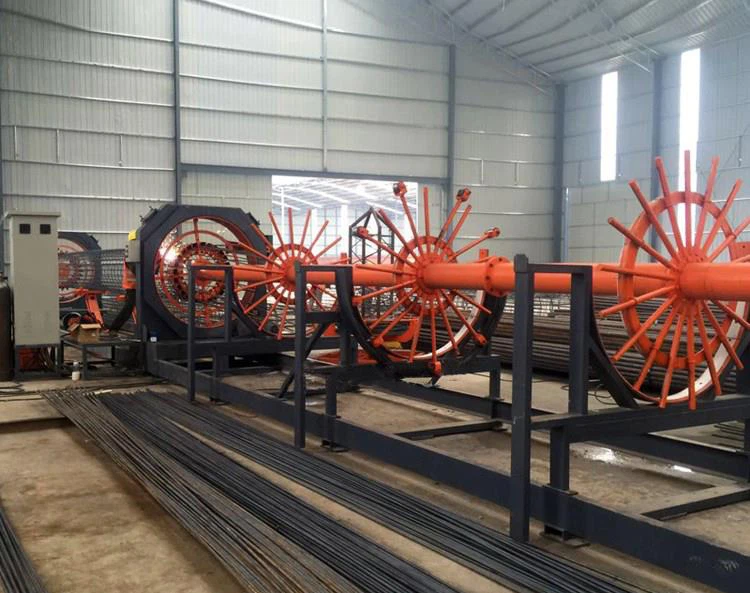

2. How a CNC Rebar Cage Welding Machine Works — Step by Step

Stage 1: Template Ring Setup

The cage diameter is determined by the template ring — a physical ring with evenly spaced slots that hold the main longitudinal bars in position. The HNYC-1500 comes with templates covering cage diameters from 300 mm to 1,500 mm. When you need a different cage diameter, you swap the template ring and rearrange the casings (bar holding sleeves) in the new slot positions. I have done this dozens of times — it takes minutes, not hours.

Stage 2: Main Bar Loading

The longitudinal main bars are loaded through the template ring slots and extended to the required cage length. The HNYC-1500 produces cages up to 12 metres as standard, extendable to 18 metres, and customisable to 25 metres for special applications like offshore piles or long-reach bridge piers. Multiple hydraulic support devices are positioned along the length to prevent the cage from sagging under its own weight during production.

Stage 3: Stirrup Wire Feeding and Winding

The helical stirrup wire — in diameters from 4 mm to 14 mm for single wire operation — is fed from the wire rack at 85 m/min. As the template ring and main bars rotate together, the stirrup wire is wound helically around the cage at the programmed pitch (spacing). The feeding precision of ±1 mm ensures consistent stirrup spacing along the entire cage length, which is critical for structural code compliance.

Stage 4: Automated Welding

At each intersection where the stirrup wire crosses a main longitudinal bar, the machine’s welding head fires and creates a resistance weld. This mechanical welding process is far more consistent than manual welding: every weld is made at the same current, the same pressure, and the same dwell time. There is no human variability, no missed intersections, and no thermal distortion from accumulated hand-welding heat.

Stage 5: Programme Changes and Data Storage

One of the features I genuinely value on the HNYC-1500 is the touch-screen control system — powered by a Taiwan Delta PLC and HMI. Changing cage parameters (diameter, length, stirrup spacing, wire size) is done on the screen without stopping the machine for manual mechanical adjustment. The system stores production programmes with user permission levels and password access, so your programmes cannot be accidentally overwritten by an untrained operator.

Key insight: The machine control software on the HNYC-1500 has been independently developed by Henan Xinyuchuang and deployed in China for many years. This is not generic off-the-shelf PLC code — it is purpose-built for rebar cage welding production.

3. HNYC-1500 Full Technical Specifications

Here are the complete specifications for the HNYC-1500 CNC steel bar welding machine:

Parameter	HNYC-1500 Specification
Wire capacity (single)	4 – 14 mm diameter
Wire capacity (double)	4 – 12 mm diameter
Cage diameter range	300 – 1,500 mm
Standard cage length	12 metres (extendable to 18 m; custom to 25 m)
Bending stirrup speed	900 – 1,800 pcs/h
Max bending speed	1,200 °/s
Feeding speed	85 m/min
Feeding precision	±1 mm
Servo motor power	15 kW + 5.5 kW
Cutting motor	4 kW
Air compressor	4 kW
Average consumption	5 kW/h
Rated voltage	380 V / 220 V
Working temperature	−5 °C to +40 °C
Machine dimensions	2,500 × 1,200 × 2,015 mm
Gross weight	2,500 kg

Source: Henan Xinyuchuang Machinery — xycsteelmachine.com

Electrical Component Configuration

One of the things we always check on any industrial machine is the quality of electrical components — because these are what fail first and cost the most to replace. The HNYC-1500’s electrical specification is strong:

• Schneider circuit breakers — global industrial standard, widely available for replacement
• Chint relays and contactors — proven in heavy industrial environments
• Taiwan Mingwei switching power supply — renowned for stability and longevity
• Delta PLC (programmable logic controller) — Taiwan Delta is an industry benchmark for machine control reliability
• Three braking resistors for driver — prevents regenerative voltage damage during deceleration
• International brand servo motor + driver (15 kW + 5.5 kW) — ensures precise speed and torque control

This is not a machine built with generic components sourced for lowest cost. The component specification reflects genuine engineering intent.

4. Model Range: Which HNYC Machine Do You Need?

Henan Xinyuchuang produces four cage sizes in the HNYC series. Here is how to choose:

Model	Max Cage Ø	Cage Length	Best Application
HNYC-1000	1,000 mm	Up to 18 m	Piles, small columns, residential
HNYC-1500	1,500 mm	Up to 18 m (25 m custom)	Bridges, commercial columns, infrastructure
HNYC-2200	2,200 mm	Up to 18 m (25 m custom)	Tunnel liners, large bridge piers, dam works
HNYC-2500	2,500 mm	Up to 18 m (25 m custom)	Offshore piles, major infrastructure, marine

My recommendation by project type:

• Residential and commercial bored piles up to 1,000 mm diameter: HNYC-1000
• Bridge piers, commercial building columns, standard infrastructure piles: HNYC-1500 — the most versatile model in the range
• Tunnel lining, large-diameter bridge pier cages, major dam works: HNYC-2200
• Offshore piles, marine infrastructure, major civil works with cages up to 2,500 mm: HNYC-2500

If your project mix includes cage diameters that span multiple models, always choose the larger model. Running a machine at 80–90% of its maximum diameter capacity is far better for longevity and weld quality than constantly maxing out a smaller machine.

5. Automatic Rebar Cage Welding Machine vs. Traditional Manual Method

I want to give you the real comparison — not marketing language, but the operational reality we have seen on sites.

Factor	Automatic Rebar Cage Welding Machine	Traditional Manual Method
Output vs manual	3–4× higher under same conditions	Baseline (1×)
Labour cost	Saves ~75% of labour	Full crew required every cage
Dimensional accuracy	±1 mm feeding precision, even spacing	Large dimensional errors common
Concentricity	Controlled by diameter template	Difficult to maintain, especially at >10 mm coil
Winding tightness	Mechanical tension, consistent weld	Often loose; thermal deformation in stirrups
Cage length	Up to 25 m (custom)	Limited by working crew reach
Programme changes	Touch-screen, no machine stop needed	Manual stop, re-setup, restart
Data logging	Built-in storage, password access	Paper records, human error
Safety	Guards, servo-controlled motion	High manual injury exposure

The productivity difference alone — 3 to 4 times the output of manual methods under the same site conditions — makes the ROI case straightforward for any site producing more than a handful of cages per week. But the quality improvement matters just as much: manual cage building commonly produces diameter errors, loose winding, and thermal distortion from hand welding that causes structural rework. The machine eliminates all three.

Labour saving fact: When completing the same volume of cage production, a CNC rebar cage welding machine saves approximately 75% of the labour cost compared to manual methods. On large infrastructure projects, this difference alone funds the machine within a single project cycle.

6. LSI Keywords and Technical Terms — Complete Reference

If you are working in this field, you need to speak the language. Here are the key terms in the automatic rebar cage welding machine ecosystem:

• Rebar cage welding machine — the primary equipment category
• CNC steel bar cage welding machine — the CNC/computer-controlled variant
• Reinforcement cage building machine — alternative industry term
• Cage forming machine — shorter term used in some markets
• Helical stirrup winding — the process of winding the spiral stirrup around main bars
• Longitudinal main bars — the straight bars running the length of the cage
• Stirrup wire — the helical wire wound around the main bars to form the cage
• Template ring — the physical ring that controls cage diameter
• Resistance welding — the welding technology used at bar intersections
• Delta PLC — Taiwan Delta programmable logic controller; the machine brain
• Servo motor drive — the precision motor system controlling feed and rotation speed
• Bored pile reinforcement — one of the primary end-uses of rebar cages
• Drilled shaft cage — the US term for bored pile reinforcement cages
• Bridge pier reinforcement cage — large-diameter structural cages for bridge support
• Tunnel lining segment reinforcement — curved reinforcement cages for tunnel construction
• Precast concrete reinforcement — cage production for factory-manufactured concrete elements
• Cage concentricity — the dimensional accuracy of the cage’s circular cross-section
• Stirrup pitch / spacing — the distance between consecutive stirrup turns
• Steel bar cage welding machine — a common search variant of the primary keyword
• Rebar cage machine for piles — application-specific search term

7. Step-by-Step Operating Guide

Here is how we run the HNYC-1500 on a production shift. I am writing this as a practical workflow, not a theoretical manual summary.

Pre-Shift Setup

• Verify the correct template ring is installed for today’s cage diameter
• Confirm the correct number of main bar casing slots are active and matching the drawing
• Check hydraulic support device pressure — all supports must be at operating pressure before cage weight is applied
• Inspect electrode tips on the welding head — replace if worn, pitted, or contaminated
• Load the correct wire spool onto the wire feed rack and thread to the feed head
• Power on the machine and enter the production programme via the touch screen: cage diameter, cage length, stirrup diameter, stirrup spacing
• Verify the programme on a short test run before committing to full-length production

Production Run

• Load main bars through the template ring to the programmed cage length
• Position hydraulic supports along the cage length and activate them
• Start the feed and winding cycle from the HMI touch screen
• Monitor the first 1 metre of winding for correct stirrup spacing and weld quality
• Check weld appearance at each main bar intersection — welds should be uniform, with no spatter, cracking, or unmelted wire
• Allow the machine to run to the end of the cage; the machine stops automatically at the programmed length
• Check overall cage length and end concentricity before releasing from the template

Cage Removal and Storage

• Lower the hydraulic supports progressively as the cage is lifted clear
• Use a crane or forklift rated for the cage weight — do not attempt to drag the cage
• Stack cages on timber bearers at regular intervals to prevent deformation
• Tag each cage with cage ID, diameter, length, bar specification, and production date
• Store covered if cage coating (epoxy or galvanised) is specified

Parameter Change Between Cage Types

This is where the HNYC-1500 earns its value over older mechanical machines. To change from one cage specification to another:

• Enter the new cage programme on the touch screen — no tools required for spacing or length changes
• Swap the template ring if the cage diameter is changing — a 2-person job taking approximately 15–20 minutes
• Re-load main bars to the new length and restart

The no-stop parameter change capability means you can run mixed cage production in a single shift without the machine downtime that plagues older mechanical machines.

8. Maintenance Schedule — How to Keep Your Machine Running for Years

The machines that last the longest on our sites are not the ones built from the best materials alone — they are the ones maintained consistently. Here is the full schedule I follow:

Daily Maintenance

• Inspect welding electrode tips — replace if worn or contaminated with copper oxide
• Clean the wire feed path of metal flings and swarf
• Check hydraulic pressure on all support devices
• Verify all drive chain tension on the rotation mechanism — loose chain causes spacing errors
• Inspect all cable runs for chafing or heat damage near the welding head
• Confirm touch-screen display is responsive and current programme is saved

Weekly Maintenance

• Lubricate all grease nipples on the rotation drive and feed mechanism
• Check and tighten all fasteners on the template ring clamps and hydraulic support mounts
• Inspect the rack-and-pinion drive for wear and clean of metal debris
• Test all servo motor axis movements at low speed for any unusual vibration or noise
• Verify braking resistor temperatures are within normal range

Monthly Maintenance

• Inspect brand bearings on the main rotation drive — replace at first sign of roughness or play
• Check the reducer gearbox oil level and condition — change annually or per manufacturer schedule
• Inspect the modular design joints between feeding rack, main engine, and cutting mechanism for any frame distortion
• Run a full calibration check: feed 10 metres of wire and measure against a reference tape — should be within ±10 mm total
• Review all stored programmes for correct parameters — especially after any operator team changes
• Test the emergency stop function and all guard interlocks

Electrode Tip Replacement — Critical Maintenance Task

Electrode tip condition directly determines weld quality. Here is the replacement procedure:

• Power off and discharge the welding circuit — do not work on the electrode with power live
• Remove the worn electrode tip using the correct socket — avoid damaging the electrode holder
• Clean the electrode holder contact face with a wire brush — contamination increases contact resistance
• Install the new tip — confirm correct tip profile for your wire diameter
• Run 10 test welds on scrap bar intersections and inspect under good light before returning to production

9. Troubleshooting — Problems and Solutions

Here is the complete troubleshooting reference for the HNYC-1500 and similar CNC rebar cage welding machines. Keep this table accessible on site.

Problem	Likely Cause	Fix
Uneven stirrup spacing	Feed encoder drift or incorrect touch-screen parameter	Re-calibrate feed encoder; re-enter spacing value
Weld not fusing	Low welding current or electrode wear	Increase current via HMI; inspect/replace electrode tips
Cage diameter out of tolerance	Wrong template ring installed	Confirm template ring matches drawing diameter
Feeding jams/stops	Bar kink in feed rack or feed precision error	Straighten bar stock; check ±1 mm feed tolerance
Servo fault alarm	Overload or over-temperature on 15 kW servo	Check duty cycle; clear alarm; inspect cooling
PLC communication error	Cable loose or Delta PLC I/O fault	Reseat communication cables; check I/O module
Cage sags mid-length	Hydraulic support not engaged or low pressure	Activate hydraulic supports; check pressure setpoint
Touch-screen unresponsive	Static build-up or firmware issue	Power cycle HMI; clean screen; update firmware if needed

10. Applications — Where Automatic Rebar Cage Welding Machines Are Used

Understanding the application landscape matters when you are specifying a machine, writing a procurement case, or estimating project equipment needs.

Bored Pile and Drilled Shaft Construction

This is the highest-volume application globally. Bored piles for building foundations, bridge abutments, and retaining structures require cylindrical rebar cages in diameters typically from 600 mm to 2,500 mm and lengths from 8 metres to 25 metres. The automatic rebar cage welding machine is built for exactly this.

Bridge Pier and Column Reinforcement

Bridge piers require heavily reinforced cylindrical cages with tight stirrup spacing to handle seismic and dynamic loads. The machine’s ±1 mm stirrup precision and consistent weld pattern make it the only practical solution for code-compliant bridge cage production at volume.

Tunnel Lining Reinforcement

Segmental tunnel liners and cast-in-place tunnel lining both require reinforcement cages — often curved or with varying pitch along the length. The HNYC series machines with their programmable pitch control handle these complex specifications without manual intervention.

Precast Concrete Manufacturing

Precast concrete factories producing columns, piles, and pipe segments use rebar cage welding machines as a core production line asset. The high output rate (3–4× manual), the consistent quality, and the programme storage capability make the machine a natural fit for factory environments with repeat production runs.

Marine and Offshore Pile Construction

Offshore and marine structures require extremely long, large-diameter cages — often 2,000–2,500 mm diameter and up to 25 metres long. The HNYC-2500, with its 25-metre custom cage length capability, is purpose-built for these applications.

Water Infrastructure — Dams, Reservoirs, Treatment Plants

Water-retaining structures use heavily reinforced cylindrical elements where cage concentricity and weld integrity are safety-critical. The mechanical template ring control and resistance welding process provide the dimensional and structural assurance these applications demand.

11. Buying Guide — What to Verify Before You Purchase

11.1 Cage Diameter Range vs. Your Project Requirements

The single most important specification. Map out all the cage diameters you will produce in the next 3–5 years and choose a model with at least 10–15% headroom above your largest required diameter. Running a machine consistently at its maximum capacity accelerates wear on the template drive and welding head.

11.2 Cage Length Capability

Standard length on the HNYC-1500 is 12 metres, extendable to 18 metres, and customisable to 25 metres. If your project requires cages longer than 12 metres — common in deep bored pile work — confirm the exact extension configuration and price before ordering.

11.3 Control System Origin and Support

We always ask: where was the PLC software developed, and who supports it? The HNYC-1500 uses a proprietary control system developed in-house by Henan Xinyuchuang, combined with a Delta PLC. The in-house development means the manufacturer can directly diagnose and update the software. The Delta PLC hardware is globally supported. This is a strong combination.

11.4 Electrical Component Brand Verification

Ask for the full electrical component list before purchasing. Schneider circuit breakers, Chint contactors, Delta PLC, and Mingwei power supplies are all verifiable international and regional brands. If a supplier cannot name the brands of major electrical components, treat that as a red flag.

11.5 Modular Transport and Installation

The HNYC-1500 is designed in modular form: feeding rack, main engine, and cutting mechanism are separately transportable and can be assembled and disassembled in one day. This is critical for projects that require the machine to be relocated between sites. Confirm this with your supplier and request the assembly/disassembly documentation.

11.6 Hydraulic Support Configuration

Long cages (over 12 metres) will sag under their own weight without adequate hydraulic support. Confirm the number of hydraulic support devices included and their maximum lift capacity per support point. Under-supported cages produce out-of-round sections.

11.7 Optional Automation Add-Ons

The HNYC-1500 offers optional chain main reinforcement automatic feeding and automatic welding manipulator attachments. If your production volume is high enough to justify further labour reduction, we recommend pricing these options at the time of initial purchase rather than retrofitting later.

11.8 After-Sales Support and Spare Parts

Electrode tips, drive chain, template rings, and servo motor drives will all need replacement over the machine’s life. Before purchasing, confirm: Are replacement electrode tips stocked for your wire diameter range? What is the lead time for a spare Delta PLC module? Is remote technical support available in your language?

12. Frequently Asked Questions (FAQ)

Q: What is the difference between a rebar cage welding machine and a stirrup bender?

A: A stirrup bender produces individual stirrups (the closed rectangular or circular rings used in beams and columns) by bending wire to a programmed shape. A rebar cage welding machine takes pre-cut main bars and stirrup wire and assembles them into a complete cylindrical cage by winding and welding. They are complementary machines, not alternatives to each other.

Q: How long does it take to build one rebar cage with the HNYC-1500?

A: Production time depends on cage diameter, length, stirrup spacing, and wire diameter. As a practical benchmark, the machine produces 900 to 1,800 stirrup windings per hour. A typical 600 mm diameter, 12-metre pile cage with 150 mm stirrup spacing (80 stirrups) would take well under 15 minutes of machine running time — compared to 2–3 hours of manual labour for the same cage.

Q: Can the machine handle both single and double wire configurations?

A: Yes. The HNYC-1500 operates with single wire from 4–14 mm diameter and double wire from 4–12 mm diameter. Double wire configurations are used for cages requiring closer stirrup spacing or heavier winding to meet structural specifications.

Q: What power supply does the HNYC-1500 require?

A: The machine operates on 380 V / 220 V (confirm with Henan Xinyuchuang for your local supply voltage). Total power draw includes the 15 kW + 5.5 kW servo motors, 4 kW cutting motor, and 4 kW air compressor. Plan your site supply for adequate capacity and run dedicated supply cables — do not share with other heavy loads.

Q: Can I extend the standard 12-metre cage length on site?

A: Yes. The machine is designed with extension capability to 18 metres as a standard option and to 25 metres as a custom order. Extension requires additional feeding rack sections and hydraulic support devices. Discuss the extension configuration with Henan Xinyuchuang before ordering if you know you will need long cages.

Q: What maintenance skill level is required on site?

A: Day-to-day maintenance (electrode tips, lubrication, chain tension) can be performed by a trained machine operator with basic mechanical aptitude. Electrical maintenance — PLC, servo drive servicing — requires a qualified electrician. Henan Xinyuchuang’s modular design makes mechanical spare parts replacement straightforward and quick.

Q: How does the machine handle different cage diameters in the same production day?

A: Diameter changes require swapping the template ring, which is a manual operation taking approximately 15–20 minutes with two workers. Stirrup spacing, wire diameter, and length changes are made on the touch-screen HMI without stopping the machine. On a well-organised site, you can run three or four different cage specifications in a single shift.

13. Safety — Operating the Machine Correctly and Legally

Safety on an automatic rebar cage welding machine is a combination of machine design features and operator discipline. Here is the full safety framework we implement:

Machine Safety Features

• Servo-controlled motion — no uncontrolled inertia or manual brake dependence
• Emergency stop accessible from the HMI and at multiple physical points on the machine
• User permission system with password access — prevents unauthorised programme changes
• Guard interlocks on the rotating template ring zone — machine stops if guards are breached
• Welding circuit isolation when the electrode holder is not in operating position

Operator PPE Requirements

• Welding-rated face shield or welding goggles — mandatory whenever the welding head is active
• Heavy-duty leather gloves for handling bare rebar bar stock
• Steel-toed safety boots
• Hearing protection for extended operation in enclosed fabrication yards
• High-visibility vest when working in shared yard areas

Working Around the Rotating Cage

• Never reach into the rotating cage zone while the machine is running — even for an adjustment
• All cage length adjustments (hydraulic supports, tag attachments) must be done with the machine stopped
• Maintain a minimum 1-metre exclusion zone around the rotating template ring during operation
• Brief all yard personnel on the machine’s operating zone before starting production

Regulatory note: Operating personnel should receive documented training on the specific machine model. Keep training records on file for insurance, site safety audits, and legal compliance in your jurisdiction.

Final Verdict: Is an Automatic Rebar Cage Welding Machine Worth It?

I have been direct throughout this guide, and I will stay direct here: yes, absolutely — if you are producing rebar cages at any meaningful volume. The economics are overwhelming.

Three to four times the output of manual methods. Seventy-five percent reduction in labour cost for the same production volume. Dramatically better dimensional accuracy. No thermal distortion from hand welding. Consistent, code-compliant weld quality across every cage, every shift.

The HNYC-1500 from Henan Xinyuchuang Machinery sits at a particularly strong point in the range: cage diameters from 300 mm to 1,500 mm cover the majority of bored pile, bridge column, and building column applications. The 12-metre standard length with 25-metre custom capability covers everything from urban commercial piles to major civil infrastructure. The Delta PLC control system and Schneider/Chint electrical specification provide confidence in long-term reliability.

The key is matching the machine to your actual workload. Specify the diameter range and cage lengths your next five years of projects will demand. Then choose the model with headroom above that. Underbuy and you stress the machine and compromise quality; overbuy and you pay for capacity you never use.

We have seen the HNYC series deployed on bridge construction projects, urban pile foundation works, and precast factories across multiple markets. The consistency of output from the machine is something you have to see to fully appreciate — but the numbers in this guide give you the framework to understand why it works.

Ready to specify the right model for your project? Contact the Henan Xinyuchuang Machinery team at xycsteelmachine.com with your cage diameter range, cage length requirements, wire diameter specification, and target output volume. They will recommend the correct HNYC model and configuration for your exact application.

Save this guide. Share it with your structural engineer, your site manager, and your procurement team. There should be no reason to go searching anywhere else — everything you need to make the right decision is right here.
