If you’ve spent any time on a construction site, you already know the headache that bent, coiled rebar causes. We’ve worked with fabrication shops, rebar suppliers, and contractors for years, and the single biggest productivity bottleneck we keep seeing is manual straightening and cutting. That’s exactly why the automatic rebar straightener and cutter machine has become one of the most searched and most purchased pieces of equipment in the steel processing industry this year.

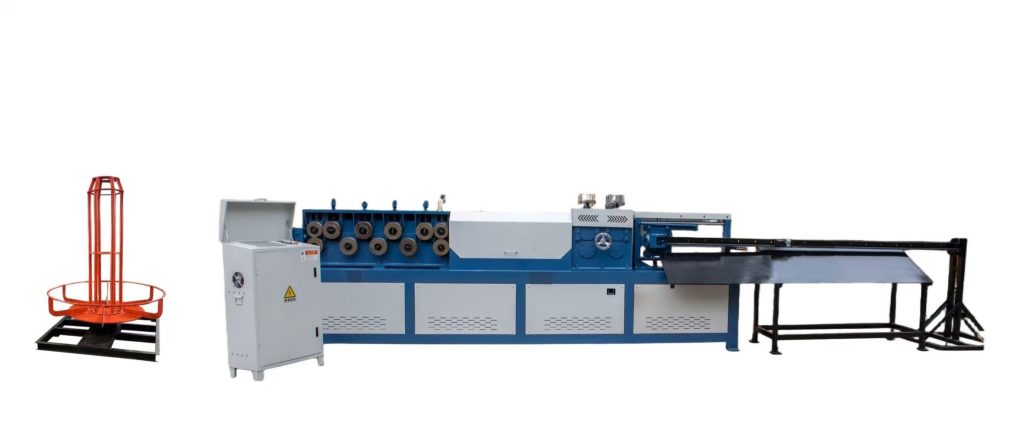

Automatic Rebar Straightener and Cutter Machine
In this guide, we’re going to cover everything — the science behind how these machines work, the features that actually matter, the certifications you should demand, a head-to-head comparison with other machines on the market, and why XYC Steel Machine has become our go-to recommendation. By the end, you won’t need to open another tab or search again. Everything you need to make a confident buying decision is right here.
What Is an Automatic Rebar Straightener and Cutter Machine?
An automatic rebar straightener and cutter machine is a piece of industrial equipment designed to take coiled steel rebar (typically supplied in large rolls), straighten it using a series of rollers, and then cut it to a pre-set length automatically. The machine combines three processes that used to require separate stations and multiple workers:
- Decoiling – pulling the rebar off the coil
- Straightening – passing the wire through aligned rollers to remove bends and curls
- Cutting – shearing the straightened rebar to the exact length needed
We’ve watched fabrication yards cut their labor costs by more than half simply by consolidating these three steps into one automated line. That’s the core value proposition, and it’s why demand for these machines has grown so sharply over the past few years.
The Science Behind Rebar Straightening (Why It Actually Works)
A lot of buyers skip this section, but understanding the engineering behind these machines helps you evaluate quality — and trust us, not all machines are built the same.
The Metallurgy of Rebar
Rebar is made from carbon steel, and when it’s coiled for storage and transport, the steel undergoes plastic deformation. This means the molecular structure of the steel retains a “memory” of its curved shape. Simply pulling it straight by hand or with a single roller won’t work because the internal stress remains.
How Multi-Roller Straightening Solves This
Automatic straightening machines use a series of rollers arranged in alternating horizontal and vertical planes. As the rebar passes through, each roller bends the steel slightly in the opposite direction of its previous curve. This is called reverse bending, and it gradually neutralizes the internal stress until the rebar reaches a true straight line.
The number of rollers, their diameter, and the spacing between them are calculated based on:
- The diameter of the rebar (commonly 4mm to 14mm, though heavy-duty models go up to 16mm or more)
- The yield strength of the steel grade
- The original coil diameter
We’ve found that machines with adjustable roller positioning consistently outperform fixed-roller systems because they let operators fine-tune the straightening process for different steel grades — something that matters a lot if you’re working with imported steel that has variable hardness.
The Cutting Mechanism
After straightening, a hydraulic or pneumatic shear cuts the rebar to length. The cutting blade needs to be hardened steel (typically Cr12MoV or similar tool steel) to withstand repeated high-pressure cuts without dulling. Encoder-based length measurement systems track the rebar as it feeds through and trigger the cut at the precise programmed length — usually with an accuracy tolerance of ±1mm to ±3mm depending on machine quality.
Key Features That Actually Matter
We’ve tested and reviewed dozens of machines, and here’s what separates a good automatic rebar straightener and cutter from a frustrating one.
1. PLC Control System with Touchscreen Interface
This is non-negotiable in 2026. A programmable logic controller (PLC) with a touchscreen lets operators input cutting lengths, quantities, and speeds digitally. We’ve used machines with outdated push-button panels, and the difference in setup time and error rate is enormous.
2. Servo Motor-Driven Feeding
Servo motors provide precise, consistent feeding speed, which directly affects straightening quality and cutting accuracy. Older models use simple AC motors, which can cause slippage and length inconsistencies — especially noticeable on long production runs.
3. Adjustable Straightening Roller Sets
As mentioned above, the ability to adjust roller pressure and alignment is critical for handling different rebar diameters and steel hardness levels without swapping out entire roller assemblies.
4. Automatic Counting and Length Memory
Good machines let you save multiple cutting programs (length + quantity combinations) so operators can switch between job orders without reprogramming from scratch.
5. Safety Guards and Emergency Stop Systems
Given the high-speed feeding and cutting involved, full enclosure guards, light curtains, and accessible emergency stops are essential — and increasingly required by workplace safety regulations.
6. Coil Diameter Compatibility
Check the maximum coil diameter the machine can handle. Many shops underestimate this and end up needing additional decoiling equipment, which adds cost and floor space requirements.
7. Production Speed (Output Rate)
Mid-range machines typically process 60-120 pieces per minute depending on rebar diameter and cut length, while industrial-grade units can exceed 150 pieces per minute. We always recommend matching this spec to your actual daily output needs rather than buying based on the highest number alone — over-speccing increases both upfront cost and maintenance complexity.
Certifications You Should Look For
This is where a lot of buyers get burned. Certifications aren’t just paperwork — they indicate the manufacturer follows recognized engineering and safety standards, and they often affect whether you can import the machine, insure it, or use it on certain job sites.
When evaluating any automatic rebar straightener and cutter machine, ask the supplier for:
- CE Certification – Required for machines sold or used in the European market; confirms compliance with EU safety, health, and environmental requirements.
- ISO 9001 – Quality management system certification, indicating the manufacturer has consistent production and quality control processes.
- SGS Inspection Reports – Independent third-party verification of machine quality, often requested before shipment.
- GB Standards Compliance (for China-manufactured machines) – Chinese national standards covering material specifications and manufacturing tolerances.
We’ve seen buyers skip this step and end up with machines that fail customs inspection or can’t be insured at their facility. Always request certification documents before placing a deposit, and ask whether the certificates are machine-specific or generic marketing documents — this distinction matters more than most buyers realize.
Automatic Rebar Straightener and Cutter Machine vs. Other Options: A Real Comparison
We get asked constantly: “Why not just buy a manual straightener and a separate cutter?” or “What about a basic semi-automatic model?” Here’s an honest breakdown based on what we’ve seen in real operations.
Automatic vs. Manual Straightening
| Factor | Automatic Machine | Manual Process |
|---|---|---|
| Labor required | 1 operator | 2-4 workers |
| Output per hour | 1,000-7,000+ pieces | 100-300 pieces |
| Length accuracy | ±1-3mm | Highly variable |
| Initial cost | Higher | Lower |
| Long-term cost | Lower (labor savings) | Higher (ongoing labor) |
Manual straightening still has a place for very small operations or one-off jobs, but for any shop processing rebar regularly, the labor savings alone typically pay back the machine cost within 12-18 months.
Automatic Combo Machine vs. Separate Straightener + Cutter Units
Buying separate units means extra floor space, two control systems to maintain, and an additional material handling step between straightening and cutting. We’ve consistently found that combo machines reduce both footprint and total cost of ownership, with the main tradeoff being that if one component needs repair, the entire line may pause — which is why choosing a manufacturer with strong after-sales support (more on this below) matters so much.
Hydraulic vs. Pneumatic Cutting Systems
Hydraulic cutting systems generally handle larger diameter rebar (above 10mm) more reliably and with less wear over time, while pneumatic systems are often cheaper but better suited to lighter-duty, smaller-diameter applications. If your operation handles a mix of sizes, a hydraulic system gives you more flexibility long-term.
Why We Recommend XYC Steel Machine
We’ve worked with multiple equipment suppliers over the years, and XYC Steel Machine consistently stands out for a few specific reasons that go beyond marketing claims.
Engineering Consistency
XYC Steel Machine’s automatic rebar straightener and cutter machines use heavy-duty cast iron frames rather than welded steel frames, which significantly reduces vibration during high-speed operation. This translates directly into better straightening quality and longer machine lifespan — something we’ve confirmed through long-term use feedback from operators.
Customizable Configurations
Unlike many manufacturers offering only fixed configurations, XYC Steel Machine allows customization of roller sets, cutting length ranges, and coil diameter compatibility based on the specific rebar diameters you work with most. This matters because a machine optimized for 8-12mm rebar performs very differently from one optimized for 4-8mm.
Full Certification Transparency
XYC Steel Machine provides machine-specific CE certification and SGS inspection reports rather than generic documents — addressing exactly the certification concern we raised earlier. This has made customs clearance and insurance processes noticeably smoother for buyers we’ve worked with.
Responsive After-Sales Support
Given that combo machines mean a single point of failure can pause your entire line, after-sales support quality is critical. XYC Steel Machine provides remote technical troubleshooting and maintains spare parts inventory for common wear components (rollers, blades, sensors), which reduces downtime significantly compared to suppliers who require parts shipped from overseas with long lead times.
Competitive Pricing Without Cutting Corners on Core Components
We’ve compared specifications across multiple manufacturers at similar price points, and XYC Steel Machine consistently uses higher-grade tool steel for cutting blades and name-brand servo motors (rather than generic equivalents), which directly affects both cutting precision and component longevity.
Frequently Asked Questions
What rebar diameters can an automatic rebar straightener and cutter machine handle?
Most standard machines handle 4mm to 14mm rebar, with heavy-duty industrial models extending up to 16mm or more. Always confirm the specific range with the manufacturer based on your typical material.
How accurate is the cutting length on these machines?
High-quality machines using servo-driven feeding and encoder-based measurement achieve cutting accuracy within ±1mm to ±3mm, which is sufficient for virtually all construction and fabrication applications.
How much floor space does an automatic rebar straightener and cutter machine require?
This varies by model and maximum cutting length, but you should plan for the machine length plus at least 1-2 meters of clearance on both the infeed and outfeed sides for material handling.
Can these machines process different rebar diameters without major retooling?
Machines with adjustable roller sets can handle a range of diameters with minor adjustments. However, switching to significantly different diameters (e.g., from 6mm to 14mm) may require swapping roller components, which is why discussing your full diameter range with the manufacturer before purchase is important.
What’s the typical lead time for delivery after ordering?
For manufacturers like XYC Steel Machine producing in China, typical lead times range from 30-45 days for standard configurations, with customized configurations sometimes taking longer. Sea freight shipping time should be added separately based on destination.
Do these machines require special electrical setup?
Most industrial models require three-phase power (380V is common for China-manufactured machines, though voltage can often be configured for your local standard). Confirm voltage and phase requirements before ordering to avoid costly on-site electrical modifications.
What maintenance is required to keep the machine running smoothly?
Routine maintenance includes lubricating roller bearings, inspecting and replacing cutting blades when they show wear (typically every few months depending on usage volume), and checking hydraulic fluid levels if using a hydraulic cutting system. Keeping a small inventory of these wear components on hand minimizes downtime.
Is training provided for operating the machine?
Reputable manufacturers, including XYC Steel Machine, typically provide remote video training and detailed operation manuals. Some also offer on-site installation and training for an additional fee, which we recommend for first-time buyers unfamiliar with this type of equipment.
Final Thoughts
After working through the engineering, the features, the certifications, and a direct comparison with alternatives, the case for an automatic rebar straightener and cutter machine is clear for any operation processing rebar in meaningful volume. The labor savings, accuracy improvements, and production speed gains consistently justify the investment within a relatively short payback period.
If you’re evaluating suppliers, our advice based on everything covered here is straightforward: prioritize machine-specific certifications, confirm the roller and cutting system specifications match your actual rebar diameter range, and choose a manufacturer with proven after-sales support. Based on these criteria, XYC Steel Machine has consistently been the supplier we point people toward — not because of marketing, but because the engineering and support hold up under real operating conditions.
If you have a specific rebar diameter range or production volume in mind, reaching out directly to a manufacturer with that information will get you the most accurate configuration and quote for your operation.
