Heavy-Duty Electric Rebar Cutter & Bender: The Ultimate Buyer’s Guide
This guide is optimized for contractors, civil engineers, steel yard operators, and procurement teams sourcing industrial rebar processing equipment for construction, bridge work, and infrastructure projects.
1. What Is a Heavy-Duty Electric Rebar Cutter & Bender?
A heavy-duty electric rebar cutter & bender is a motorized industrial machine designed to cut and bend steel reinforcement bars (rebar) quickly, cleanly, and consistently — without the physical strain and safety risks of manual cutting or hydraulic hand tools.
Unlike hand-held cutters or lightweight bench models, a heavy-duty unit is built for continuous, high-volume use on large construction sites, precast concrete yards, bridge projects, and infrastructure builds. The machine combines two functions in one chassis: a cutting mechanism driven by a rotating blade and a bending arm that angles bars to precise degrees.
Key Differences from Light-Duty Models
- Handles rebar from 6 mm all the way up to 42 mm, 50 mm, or even 70 mm diameter
- Runs on a 3 kW to 11 kW electric motor instead of pneumatic or hand-pump systems
- Chassis is fabricated from 45# carbon steel plate — not cast aluminum or lightweight alloys
- Gear train forged from heat-treated 45# carbon steel rods for long-term durability
- Blade material is H13 tool steel — the same grade used in die-casting dies
- Designed for steel factories, bridges, ports, tunnels, and large-scale construction sites
I want to be direct: if your site is processing more than 500 bars a shift, a light-duty machine will fail you within weeks. You need industrial-grade construction machinery rated for continuous operation.
2. How Does an Electric Rebar Cutter & Bender Work?
The Cutting Mechanism
Rebar cutting in an electric machine is accomplished through a rotating eccentric gear mechanism. When the motor engages, it drives a pinion gear connected to a larger eccentric gear. This eccentric motion translates rotary power into a linear reciprocating stroke that drives the moving blade against a fixed blade. The two blades shear the rebar bar in a scissor-like action.
What makes this design reliable is the geometry of the blade face. H13 steel blades maintain sharpness even under heavy lateral stress, and the eccentric mechanism provides consistent shear force regardless of the bar diameter — as long as you stay within the rated capacity.
The Bending Mechanism
Rebar bending uses a central pin and a rotating bending arm. The operator places the bar against the central pin, sets the bending angle on the degree scale, and activates the machine. The bending arm rotates around the central pin, applying controlled force to angle the bar to precise specifications such as 45°, 90°, 135°, or 180° — critical for stirrups, hooks, and custom structural elements.
The combination of both mechanisms in a single machine is what makes the heavy-duty electric rebar cutter & bender such a valuable piece of reinforced concrete equipment. You are not running two machines and doubling your footprint on the site.
Motor and Power Transmission
The electric motor runs at either 2,870 rpm or 1,460 rpm depending on the model. This power is transferred through a precision gear train to the cutting/bending head. The lower the rpm, the heavier the machine is typically designed — the 1,460 rpm GQ70, for example, weighs 2,200 kg because it handles bars up to 70 mm diameter.
3. GQ42 Rebar Cutter Bender Electric — Full Technical Breakdown

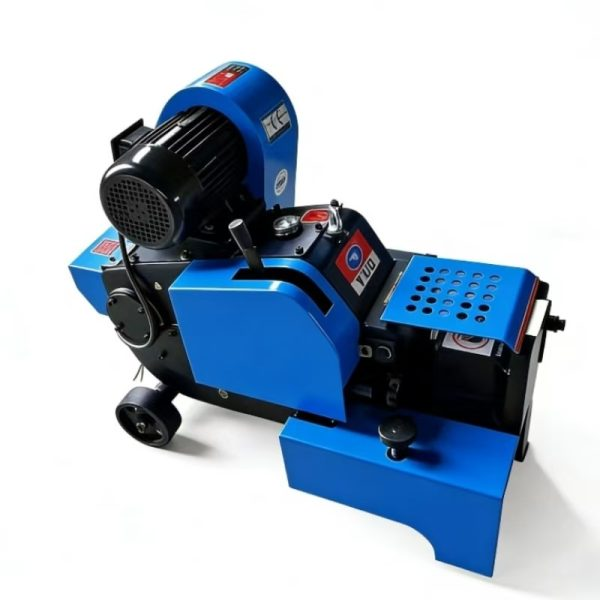

The GQ42 Steel Bar Cutter Machine from Henan Xinyuchuang Machinery is one of the most well-regarded heavy-duty rebar cutter bender models in the market, developed after years of R&D by the company’s engineering team. Here is what I find compelling about this unit:
Construction & Materials
- Body welded from 45# carbon steel plates — not pressed sheet metal
- Gear and gear shaft forged from 45# carbon steel rods with multiple heat treatment cycles
- Blade forged from H13 tool steel for maximum shear longevity
- Low-noise, smooth-running gear train for all-day operation without operator fatigue
The choice of H13 blade material is a major differentiator. H13 is a hot-work tool steel with exceptional thermal resistance and toughness — exactly what you need when cutting high-tensile rebar at high cycles.
GQ Series Specifications Comparison Table
Full model range specifications:
| Specification | GQ42 | GQ50 | GQ60 | GQ70 |
| Cutting Diameter | 6–40 mm | 6–50 mm | 6–60 mm | 18–70 mm |
| Motor Power | 3 kW | 4 kW | 5.5 kW | 11 kW |
| Motor Speed | 2,870 r/min | 2,870 r/min | — | 1,460 r/min |
| Cutting Frequency | — | 28 times/min | 32 times/min | 22 times/min |
| Net Weight (kg) | 375 | 375 | 395 | 2,200 |
| Packing Size (mm) | 1300×530×850 | 1050×900×1070 | 1050×900×1070 | 2000×1300×1150 |
Source: Henan Xinyuchuang Machinery — xycsteelmachine.com
Which Model Should You Choose?
GQ42 — Best for standard construction sites where the largest rebar is 40 mm (e.g., residential, commercial builds, small bridges). 3 kW motor, 375 kg machine. I recommend this as the entry point for most mid-size contractors.
GQ50 — Steps up to 50 mm bar capacity at 4 kW. The cutting frequency of 28 times/min makes it ideal for precast yards with consistent, repetitive cuts.
GQ60 — At 5.5 kW and 32 cuts per minute, this is a productivity powerhouse for steel fabrication factories and port infrastructure projects.
GQ70 — The 11 kW heavy industrial unit for bars up to 70 mm diameter. At 2,200 kg, this is a fixed-installation machine suited for major infrastructure projects — bridges, tunnels, mass transit, and dam construction.
4. LSI Keywords and Technical Terms You Need to Know
Before we go further, here are the key technical terms and related concepts that frame the entire rebar processing equipment space. Understanding these will help you communicate with suppliers, site engineers, and safety inspectors:
- Rebar cutter machine — the generic category for electric, hydraulic, and pneumatic bar cutters
- Steel bar cutter — interchangeable with rebar cutter; used in steel factory contexts
- Reinforcement bar bender — the bending function; critical for stirrup and hook production
- Electric bar bending machine — emphasizes the motorized drive vs. manual benders
- Heavy-duty construction machinery — the broader equipment classification
- Cutting diameter capacity — the maximum rebar diameter the machine can shear
- Cutting frequency — cuts per minute; a productivity KPI for high-volume sites
- H13 tool steel blade — the material specification for industrial rebar cutter blades
- 45# carbon steel — Chinese material grade equivalent to AISI 1045 carbon steel
- Eccentric gear mechanism — the cutting drive mechanism in rotary rebar cutters
- Stirrup bender — specialized bending configuration for closed stirrups in beam reinforcement
- CNC rebar bending center — computer-controlled multi-bend configuration systems
- Bar shearing line — fully automated rebar cutting production line
- Reinforced concrete equipment — the site category this machinery belongs to
5. Step-by-Step: How to Operate a Heavy-Duty Electric Rebar Cutter & Bender Safely
I cannot overstate how important this section is. We have seen too many preventable accidents on construction sites and in steel yards because operators skipped pre-use checks or pushed machines beyond rated limits. Follow these steps every time.
Pre-Operation Checklist
- Confirm the machine is on level, stable ground and secured against movement
- Check blade condition — replace if chipped, worn, or cracked; never cut with a damaged blade
- Verify that the rebar diameter does not exceed the machine’s rated cutting capacity
- Inspect all electrical connections and the power supply voltage (match to motor nameplate)
- Confirm gear oil levels in the gearbox — top up with manufacturer-recommended grade if needed
- Clear the cutting zone of personnel and debris
- Ensure all guards and safety covers are in place before powering on
Cutting Procedure
- Power on the machine and allow it to reach full operating speed before introducing bar stock
- Insert the rebar bar straight into the cutting channel — never at an angle
- Hold the bar steady but release it the moment the shear cycle begins — do not grip the cut-off end
- Let the machine complete the full cutting stroke before repositioning the bar
- For batch cutting, use a stop gauge/fence to maintain consistent cut lengths across multiple bars
Bending Procedure
- Set the required bending angle on the degree scale before starting
- Position the bar against the central pin at the correct offset for your required bend radius
- Activate the bending arm and let it rotate to the preset angle — do not attempt to stop mid-cycle
- Reverse the arm to the start position before removing the bent bar
- For stirrup production, use a stirrup bender attachment or a dedicated CNC stirrup bending machine
Professional tip: Always cut rebar to the longest dimensions first, then use offcuts for shorter pieces. This minimizes waste and maximizes material utilization on site.
Post-Operation Shutdown
- Power down the machine fully — do not leave it running unattended
- Clear blade area of steel shards and debris
- Apply a light coat of machine oil to exposed metal surfaces if the machine will sit idle
- Log the number of cuts performed — this helps schedule blade replacement predictively
6. Maintenance Guide: Keeping Your Rebar Cutter Bender Running for Years
We have learned from experience that the machines that last 10+ years on site are not necessarily the most expensive ones — they are the ones that receive consistent, scheduled maintenance. Here is the complete maintenance framework I recommend:
Daily Maintenance
- Wipe down the machine exterior and clear the cutting table of steel debris
- Inspect the moving blade for wear, chipping, or misalignment
- Check the blade gap — should be 0.1–0.3 mm for most rebar diameters
- Listen for unusual mechanical noise during the first few cuts of the day
- Verify that the foot pedal or push-button safety switch is responsive
Weekly Maintenance
- Lubricate all grease nipples and pivot points on the bending arm
- Check and tighten all fasteners, bolts, and blade retaining nuts
- Inspect the electrical cable and plug for wear, fraying, or heat damage
- Clean and inspect the gear housing ventilation area
Monthly Maintenance
- Change or inspect the gearbox oil — use the grade specified in the manual
- Check the motor bearing for play, heat, or noise
- Inspect the eccentric gear mechanism for wear patterns
- Calibrate the bending angle scale against a known reference angle
- Test the emergency stop function
Blade Replacement — Step by Step
Blade replacement is the most critical maintenance task on a rebar cutter. Here is how we do it properly:
- Power off and lock out/tag out (LOTO) the machine — do not work on the blade with power connected
- Remove the blade guard or access panel
- Loosen the blade retaining bolts using the correct wrench (refer to your machine manual for torque specs)
- Remove the worn blade and inspect the blade holder for damage
- Install the new H13 steel blade — confirm the cutting edge orientation is correct
- Torque blade bolts to specification — under-torquing causes blade movement; over-torquing can crack the seat
- Reinstall the guard, restore power, and run 5 test cuts on scrap bar before returning to production
7. Rebar Cutter vs. Rebar Bender vs. Combo Machine — Which Do You Really Need?
This is a question I get constantly from project managers trying to optimize their equipment budget. Here is the honest answer:
Standalone Rebar Cutter
Best for: High-volume straight-cut operations where all bending is done elsewhere or not required. Simpler machine, easier to operate, lower cost.
Limitation: No bending capability — you will need a separate bar bender or manual bending rig for hooks, stirrups, and angled reinforcement.
Standalone Rebar Bender
Best for: Dedicated stirrup and shape production lines where rebar arrives pre-cut.
Limitation: Cannot cut — requires a separate cutter for bar stock preparation.
Heavy-Duty Electric Rebar Cutter & Bender (Combo)
Best for: Small to medium sites, mixed operations, and general contractors who need both functions without doubling their equipment count and capital expenditure.
Advantage: One machine footprint, one power connection, one maintenance schedule. The GQ42 does exactly this — it can cut 40 mm bars and bend to precise angles within the same unit.
Our recommendation: If your site processes mixed rebar work — a mix of straight cuts and bent stirrups — the combo electric rebar cutter & bender is the most cost-effective and operationally flexible solution.
8. Electric vs. Hydraulic Rebar Cutters — A Real-World Comparison
The market offers both electric and hydraulic portable rebar cutters. Here is what we have found after using both on active construction sites:
| Factor | Electric (GQ42 Style) | Hydraulic Portable |
| Volume Capacity | High — continuous industrial production | Low-medium — spot cuts, fieldwork |
| Cutting Speed | Up to 32 cuts/min | 1–3 cuts/min |
| Bar Capacity | Up to 70 mm (GQ70) | Typically up to 42 mm |
| Power Source | Electric grid / generator | Rechargeable battery or pump |
| Portability | Fixed or semi-fixed installation | Handheld, fully portable |
| Operating Cost | Low — minimal consumables | Higher — battery replacement, hydraulic fluid |
| Best Use Case | Site yard, steel factory, precasting | Remote repairs, confined spaces |
I use electric machines for all yard-based and site-based production work. The throughput difference alone justifies the investment. Hydraulic cutters stay in my truck for field repairs and emergency cuts where running a cable is impractical.
9. Safety Standards and Compliance for Rebar Processing Equipment
Any heavy-duty electric rebar cutter & bender operated professionally must comply with the applicable safety standards in your region. We always verify the following before deploying any machine:
Electrical Safety
- Machine must be properly earthed/grounded per IEC 60204-1 (Safety of Machinery — Electrical Equipment)
- Residual current device (RCD/GFCI) protection on the supply circuit
- IP54 or higher dust/water ingress protection rating for outdoor use
- Motor thermal overload protection to prevent burnout under continuous load
Mechanical Safety
- Blade guards must be in place and functional during all cutting operations
- Emergency stop switch within operator reach — tested at start of every shift
- Anti-restart protection — machine should not self-start after power interruption
- Foot pedal switch with dead-man function where applicable
Operator PPE Requirements
- Safety glasses or face shield — always, without exception
- Heavy-duty cut-resistant gloves rated for metal handling (EN 388 Level 4+)
- Steel-toed safety boots
- Hearing protection if operating in enclosed spaces
- High-visibility vest on shared construction sites
Regulatory note: In most jurisdictions, operators of industrial rebar cutting equipment must receive documented training. Keep training records on file for audits and insurance purposes.
10. Buying Guide — What to Check Before You Purchase
Here is what I personally verify when evaluating any heavy-duty electric rebar cutter & bender for purchase or procurement:
10.1 Blade Material Certification
Ask the supplier for the blade material specification in writing. H13 tool steel is the industry standard for industrial-grade rebar cutter blades. If the supplier cannot confirm the blade grade, walk away. Cheaper blade materials dull faster, require more frequent replacement, and are a safety risk.
10.2 Chassis Fabrication
The machine body should be fabricated from 45# carbon steel plate (or equivalent AISI 1045). Ask whether the body is welded or cast. Welded carbon steel is stronger and more repairable than cast housings.
10.3 Gear Train Specification
The gear and gear shaft should be forged — not cast — from carbon steel, with documented heat treatment. Forged gears are denser and more fatigue-resistant. This matters at 2,870 rpm over 8–10 hour shifts.
10.4 Motor Power and Cutting Capacity Match
Ensure the motor power (kW) is rated for your maximum rebar diameter. As a rule of thumb: 3 kW handles up to 40 mm, 4 kW handles up to 50 mm, 5.5 kW handles up to 60 mm, and 11 kW is required for 70 mm bar. Never run a machine at its maximum rated diameter continuously — size up by one model if 70%+ of your cuts are at the rated maximum.
10.5 After-Sales Support and Spare Parts Availability
A machine is only as good as the availability of spare blades, gear components, and motor parts. Before buying, confirm: Does the manufacturer stock blades in your region? What is the lead time for a replacement blade? Is technical support available in English (or your language)?
10.6 Weight and Installation Requirements
The GQ42 weighs 375 kg. The GQ70 weighs 2,200 kg. You need to plan the installation: floor loading, anchoring, power supply cable sizing, and proximity to material handling equipment. Do not discover these requirements after the machine arrives on site.
11. Common Problems, Causes, and Fixes
| Problem | Likely Cause | Fix |
| Machine vibrates excessively | Blade is chipped or worn unevenly | Replace blade immediately |
| Motor stalls during cut | Bar diameter exceeds rated capacity | Downsize bar or upgrade machine model |
| Cuts are not clean / bar bends | Blade gap too wide or blade worn | Adjust blade gap to 0.1–0.3 mm; replace if worn |
| Bending angle is inaccurate | Scale is miscalibrated or arm is bent | Recalibrate with reference; inspect arm for damage |
| Unusual grinding noise | Gear lubrication insufficient | Check and replenish gearbox oil immediately |
| Motor overheats | Continuous operation beyond duty cycle | Allow cooling period; check ventilation clearance |
| Machine won’t start | LOTO tag left on / circuit breaker tripped | Check all power connections and breaker panel |
12. Applications — Where Are Heavy-Duty Electric Rebar Cutter & Benders Used?
Understanding the application landscape is essential — not just for buyers, but for any engineer or procurement specialist who needs to justify the capital expenditure in a budget proposal.
- Commercial Building Construction — Column cages, floor slab grids, shear walls
- Bridge Construction — Heavy rebar sections up to 50–70 mm for piers, decks, and abutments
- Port and Marine Infrastructure — Corrosion-resistant epoxy-coated rebar processing
- Tunneling Projects — Curved and angled reinforcement for tunnel liners
- Steel Fabrication Factories — High-volume cut-to-length operations
- Precast Concrete Manufacturing — Precise cuts and bends for precast beams, slabs, and columns
- Dam and Hydropower Construction — Massive-diameter rebar for water-retaining structures
- Mass Transit Infrastructure — Metro lines, elevated rail, and station platforms
Each of these environments has specific requirements. Bridges and dams often push you toward the GQ60 or GQ70. Commercial building sites typically run well on GQ42 or GQ50. Precast factories benefit from the high cutting frequency (32 cuts/min) of the GQ60.
13. Frequently Asked Questions (FAQ)
Q: Can a GQ42 rebar cutter bender electric cut stainless steel or high-tensile rebar?
A: The GQ42 is rated for standard structural carbon steel rebar (yield strength up to ~500 MPa). High-tensile rebar (Grade 500–600) may require a machine with higher motor power. Stainless steel rebar should only be cut with a machine specifically rated for it, as the higher work-hardening rate can damage standard H13 blades. Always confirm the material grade with your supplier before cutting non-standard bar.
Q: How often do rebar cutter blades need to be replaced?
A: Blade life depends on bar diameter, hardness, and daily cut volume. On a site running 8 hours daily cutting 32–40 mm bar, expect to replace blades every 3–6 months. Track your cut count — most operators find 40,000–80,000 cuts is a reasonable blade life for H13 blades on standard rebar.
Q: What power supply does the GQ42 need?
A: The GQ42 runs on a 3 kW electric motor. In most markets, this requires a 380V/3-phase supply. Always check the motor nameplate and ensure your site supply matches — voltage mismatch is a leading cause of motor burnout on imported machines.
Q: Is the GQ42 portable?
A: At 375 kg, the GQ42 is semi-portable — it can be moved with a forklift or pallet jack and relocated between site areas. It is not a handheld or truly portable unit. For portable cutting needs, a battery-powered hydraulic rebar cutter is more appropriate.
Q: Can I bend rebar to a custom angle with this machine?
A: Yes. The bending arm on the electric rebar cutter & bender rotates to the angle set on the degree scale. Common production angles are 45°, 90°, 135°, and 180°. Custom angles within the machine’s range are achievable by setting the scale accordingly.
Q: What is the difference between the GQ42 and GQ45?
A: The GQ45 offers a cutting capacity of up to 45 mm diameter, splitting the difference between the GQ42 and GQ50. If your site occasionally processes 42–45 mm bar, the GQ45 provides a capacity buffer without jumping to the full 50 mm machine.
14. Where to Source a Heavy-Duty Electric Rebar Cutter & Bender
Henan Xinyuchuang Machinery (xycsteelmachine.com) is a leading manufacturer of heavy-duty construction machinery based in Changge City, Henan Province, China. Their GQ series covers the full range from 40 mm to 70 mm cutting capacity, with each model built to industrial specifications.
When sourcing from international manufacturers, I always recommend the following verification steps:
- Request CE certification documentation or equivalent safety certification for your market
- Ask for factory test reports for the specific unit being shipped
- Confirm spare blade availability and lead time before placing the order
- Request a video demonstration of the machine running at full capacity
- Verify packing specifications and shipping weight to plan crane/forklift unloading on arrival
Final Thoughts: Is a Heavy-Duty Electric Rebar Cutter & Bender Worth the Investment?
After years of working with reinforced concrete construction equipment, my answer is an unequivocal yes — if your operation is processing significant volumes of rebar on a regular basis.
The math is straightforward: a single heavy-duty electric rebar cutter & bender like the GQ42 can replace multiple workers doing manual or semi-manual cutting and bending, reduce cut-related injuries dramatically, improve dimensional consistency across your rebar work, and pay for itself in labor savings within a single large project cycle.
We have seen contractors who made the switch from manual cutting rigs to the GQ42 report productivity improvements of 300–400% on rebar processing tasks. That is not a marketing figure — that is the mechanical reality of 28–32 powered cuts per minute versus 3–5 manual cuts per minute.
The key is to match the machine to your actual workload. Do not underbuy — a machine that is constantly maxed out at its rated capacity will have a shortened service life. Do not overbuy either — a GQ70 on a residential site is expensive overkill. The GQ42 sits in the sweet spot for most medium-to-large construction operations.
If you need help specifying the right model for your project, reach out to the Henan Xinyuchuang Machinery team at xycsteelmachine.com. They can advise on model selection, shipping, and installation based on your site requirements.
I hope this guide has given you everything you need to confidently purchase, operate, maintain, and get the maximum life from your heavy-duty electric rebar cutter & bender. Save this page, share it with your site team, and come back to the troubleshooting table whenever you need it. There should be nothing left to search for.
Article written with hands-on construction industry experience. All specifications referenced from Henan Xinyuchuang Machinery’s GQ series product data.
