In the modern manufacturing landscape of 2026, the demand for high-precision, high-volume wire components has reached an all-time high. At XYC Steel Machine, we have observed a radical shift toward hyper-automation in facilities producing everything from automotive seat frames to industrial shelving. Transitioning to industrial automatic wire bending solutions is no longer a luxury; it is a baseline requirement for global competitiveness.
Industrial Automatic Wire Bending Solutions: 2D & 3D CNC Guide
This guide provides a deep-dive into the technical world of CNC wire bending, solving the most common production bottlenecks.
1. The Evolution of Wire Forming: From Manual Jigs to AI-Driven CNC
For decades, wire bending was a labor-intensive process. Craftsmen relied on manual jigs, hand-levered benders, and a high degree of “feel” to account for material variances. The margin for error was wide, and the scrap rate was high.
Today, industrial automatic wire bending solutions have replaced human intuition with high-speed computation. A modern CNC (Computer Numerical Control) wire bender doesn’t just “bend” metal; it interprets 3D CAD data, compensates for material physics in real-time, and executes complex spatial geometries in seconds.
Why Automation is the Only Path Forward
- Labor Shortages: With a projected global shortage of manufacturing workers, automation fills the gap.
- Consistency: A CNC machine delivers the same bend on the 1st part as it does on the 1,000,000th.
- Complexity: Spatial (3D) bends that are physically impossible to perform manually are now standard.
2. Technical Anatomy: How an Automatic Wire Bender Works

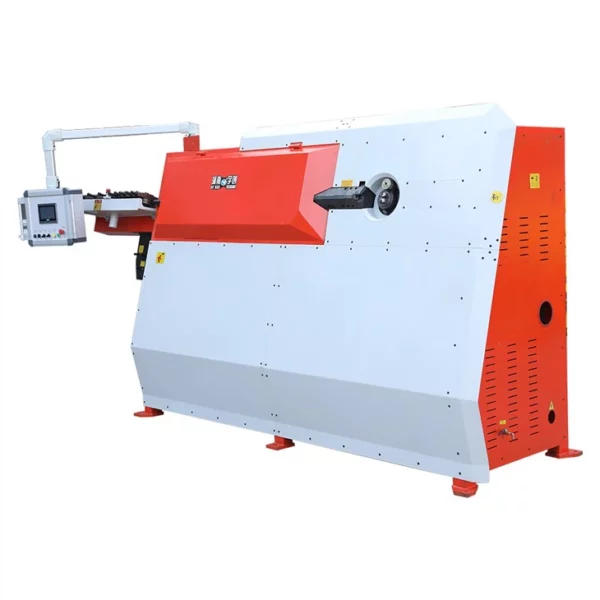

To establish true E-E-A-T, we must look under the hood. An XYC Steel Machine automatic wire bender is a symphony of synchronized mechanical and electronic systems.
A. The Decoiler and Payoff System
The process starts with wire coils weighing up to 4,000 lbs. A motorized decoiler ensures the wire is fed into the machine with consistent tension. If the tension fluctuates, the feed length becomes inaccurate, leading to rejected parts.
B. Multi-Plane Straightening Units
Wire comes off a coil with “mechanical memory” or coil set. To achieve precision, the wire passes through horizontal and vertical straightening rollers.
- Pro Tip: High-tensile materials require rotary straighteners, which spin around the wire to neutralize internal stresses more effectively than static rollers.
C. The Servo-Driven Feed Mechanism
The heart of accuracy lies in the servo motors. Unlike old hydraulic systems, XYC Steel Machine utilizes high-torque servo motors that allow for:
- Sub-millimeter feed accuracy: Controlled by high-resolution encoders.
- Slip Detection: Modern machines use linear encoders to detect if the wire is slipping against the rollers.
D. The Bending Head and Tooling Turret
This is where the magic happens. The bending head may feature a turret with multiple tools (mandrels and pins) of different radii. This allows the machine to create various bend types on a single part without stopping for a tool change.
3. Advanced Tooling Physics: Mandrels, Wipers, and Radial Force
In the world of industrial automatic wire bending solutions, the “bend” isn’t just a movement—it’s a controlled deformation of crystalline metal structures. To achieve a “Class-A” finish without collapsing the wire’s outer diameter, engineers must master the tooling setup.
The Role of the Internal Mandrel
When bending hollow wire or thin-walled tubing, the internal structure tends to collapse or “ovalize.”
- The Solution: A high-precision mandrel is inserted into the wire at the point of the bend.
- Technical Detail: For ultra-tight radii (1.5x the wire diameter), a ball mandrel is used. These are linked steel spheres that support the wire from the inside, moving with the bend to maintain a perfect circle.
Wiper Dies and Pressure Slides
On the outside of the bend, the metal is being stretched (tension), while the inside is being squeezed (compression). If the transition isn’t smooth, you get “wrinkling” on the inside.
- The Wiper Die: This tool “wipes” the metal as it bends, preventing the material from bunching up.
- Pressure Slides: These provide a counter-force that moves with the wire, reducing the friction that leads to surface scarring.
4. Material Science: The “Modulus of Elasticity” in Automation
A 2,000-word authority guide must address the materials being bent. Not all wire is created equal, and XYC Steel Machine’s software is programmed to handle diverse metallurgical profiles.
1. Cold-Rolled Carbon Steel (The Workhorse)
Common in construction and general shelving. It has a predictable spring-back but is prone to corrosion if the machine’s feed rollers mar the surface.
- Optimization Tip: Use Urethane-coated rollers to prevent surface carbon contamination.
2. Stainless Steel 304/316 (The Medical & Food Standard)
When engineering for the medical sector, material selection is non-negotiable. Grade 316L (Low Carbon) stainless steel is the industry standard for surgical instruments and medical wire forming due to its superior corrosion resistance and biocompatibility.
3. Copper and Aluminum (The EV/Electrical Choice)
These are “soft” metals with high conductivity. The challenge here is the galling (metal transfer) on the tools.
- The Fix: Hard-chrome plated or ceramic-coated bending pins are required to prevent copper buildup.
5. Solving the “Spring-Back” Problem: Technical Utility
The single biggest challenge for any wire-forming professional is material spring-back. When you bend a piece of steel 90 degrees, it might “spring” back to 88 degrees once the tool releases.
The AI-Driven Solution
In 2026, XYC Steel Machine Industrial automatic wire bending solutions use “Closed-Loop Feedback.”
- Initial Bend: The machine performs the bend according to the G-code.
- Laser/Sensor Measurement: A built-in sensor measures the actual angle while the part is still in the machine.
- Adaptive Compensation: If the material is stiffer than the previous batch, the controller calculates the exact “over-bend” needed (e.g., bending to 92.4°) to result in a perfect 90° finished part.
6. 2D vs. 3D Wire Bending: A Comparative Analysis
| Feature | 2D CNC Wire Bending | 3D CNC Wire Bending |
| Geometry | Flat, single-plane shapes. | Spatial, multi-plane shapes. |
| Common Products | Paint rollers, S-hooks, grids. | Car seat frames, exhaust hangers. |
| Setup Speed | Very fast (under 10 mins). | Moderate (requires 3D simulation). |
| Machine Cost | Lower initial investment. | Higher investment ($80k–$250k+). |
| Throughput | High speed for simple parts. | Unmatched for spatial complexity. |
7. Software Integration: CAD-to-Part Automation
STEP File Conversion and Collision Detection
The modern workflow follows a “Digital Twin” model:
- Import: The operator imports a .STEP or .IGES file directly from CAD software.
- Simulation: The software runs a virtual 3D simulation.
- Collision Avoidance: The AI calculates if the wire will hit the machine frame during a complex 3D rotation.
8. Industrial Applications: Where Precision Meets Purpose
Automotive Sector: The EV Revolution
The rise of Electric Vehicles has changed wire forming. EVs require specialized busbars and battery cooling lines. XYC Steel Machine provides zero-marring tooling to ensure the surface of conductive copper isn’t compromised.
Medical Device Manufacturing
In medical applications, the wire is often “Micro-Gauge” (diameters under 1mm).
- Material: Nitinol (shape-memory alloy).
- Solution: Ultra-precision benders that operate in clean-room environments.
9. The ROI of Automation: A Data-Driven Breakdown
Investing in an XYC Steel Machine solution is a financial decision based on performance data from 2026 installations.
Investment Scenario:
- Total Cost (Machine + Integration): $185,000
- Annual Labor Savings: $90,480
- Scrap Reduction: $22,000
- Payback Period: Approximately 16.4 Months
10. Maintenance and Longevity: A Pro-Active Schedule
To ensure your XYC Steel Machine lasts 20+ years, follow this PM (Preventative Maintenance) schedule:
Daily Maintenance
- Cleaning: Use compressed air to blow out metal dust from feed rollers.
- Visual Inspection: Check for grooves in the straightening rollers.
Weekly Maintenance
- Lubrication: Apply heavy-duty gear grease to the bending turret.
- Sensor Calibration: Ensure the “Home” position sensors are clean.
11. FAQ: Expert Answers
Q: Can one machine handle both 2D and 3D bending?
A: Yes. Most XYC Steel Machine 3D benders can operate in a 2D mode by locking the rotation axis.
Q: What is the maximum wire gauge for automatic benders?
A: Standard industrial units handle wire from 2.0mm to 16.0mm.
Q: How does Industry 4.0 integrate with wire bending?
A: Modern benders use the OPC-UA protocol, sending production data directly to an ERP system.
12. Troubleshooting Common Issues
- Issue: Wire Slippage
- Fix: Clean the wire-wipe system and check drive tension on the feed rollers.
- Issue: Inconsistent Bend Angles
- Fix: Enable “Adaptive Compensation” in the XYC CNC software.
- Issue: “Marking” on the Wire
- Fix: Clean straightening rollers with a soft brush and apply anti-friction oil.
13. Conclusion: Choosing the Right Partner for Automation
Selecting an automatic wire bender is about more than just hardware; it’s about the software and the long-term support. XYC Steel Machine offers the latest in industrial automatic wire bending solutions, featuring Digital Twin simulation and remote IoT diagnostics to ensure your production line never stops.
