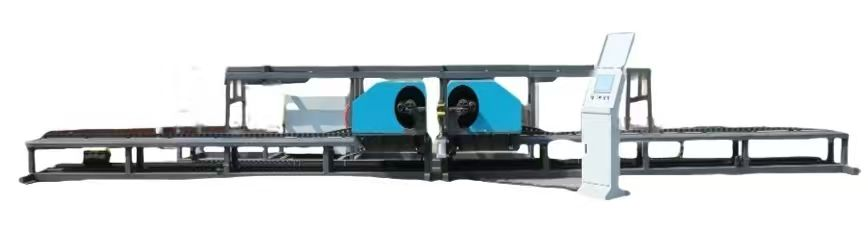

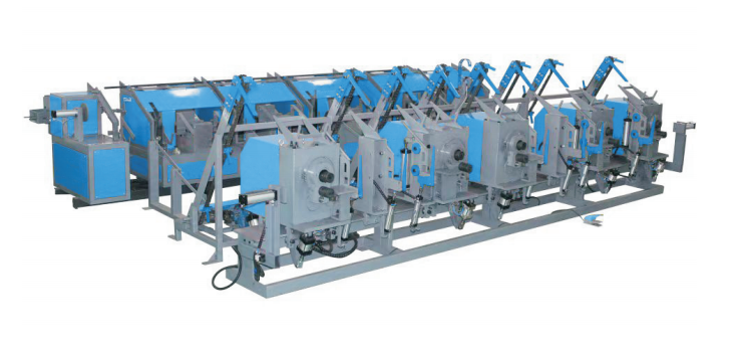

Intelligent Steel Bar Threading and Grinding Production Line

The rebar threading and grinding production line is a fully automatic system that enables automatic sawing, threading, and grinding of rebars. It includes an uncoiling rack, feeding rack, sawing machine, threading machine, and grinding machine. The system features a compact layout, simple operation, and complete functionality.

Intelligent Steel Bar Threading and Grinding Production Line Description

Machine Usage
Technical Parameters

average power consumption	13kw
Sawing speed	约10-7mm/min
effective width	250 (large cutting width of sawing machine: 320mm)
Rebar conveying speed	0.8-0.9ms
Sawing length	≤12m
Silo levels	2 (or 3 according to the actual situation of the customer)
Total gas consumption	0.25-0.3m³
Total equipment power	70kw
Equipment size	28000×11000×1600mm
Length error	±10mm
Saw cutting machine Clamping method	Oil pressure + air pressure
Saw cutting machine motor power	7.5kw
Steel bar diameter	16 80 88 25 28 32 35 40 45 50 mm
Number of sawing roots	13 11 10 8 7 6 6 5 5 4

Performance Features

Intelligent, efficient, and energy-saving integrated design, combining threading and grinding functions.
High efficiency.
All electrical components adopt well-known domestic brands.
Full servo drive and PLC control, overcoming the shortcomings of traditional machines such as low efficiency and large errors.
Large sawing width.
Improves production efficiency and reduces manual operation.
