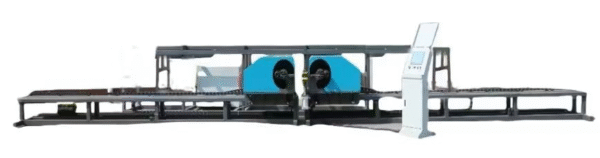

G2L36 CNC Vertical Steel Bar Bending Center
CNC rebar bending centers can perform simultaneous bidirectional bending within a single cycle. The two bending machines can operate independently or simultaneously, requiring only a single clamping operation, significantly improving production efficiency and reducing labor intensity. They are widely used in rebar processing for projects such as bridge construction. Our company’s CNC rebar bending centers primarily consist of a rebar bending unit, a rebar clamping unit, a machine frame, and a rebar conveyor. Adhering to the design philosophy of “customer satisfaction, customer convenience, and efficient production,” our CNC rebar bending centers combine practicality, efficiency, and aesthetics.
G2L36 CNC Vertical Steel Bar Bending Center Description
Technical parameters
| Rebar processing diameter range | Φ12mm—36mm |
| bending angle | Positive bend: 0°~180°; negative bend: 0°~-120° |
| bending direction | Can be bent in both directions |
| Bending accuracy | ±1° |
| Length accuracy | ±1mm/m |
| Bending speed | 65°/ s |
| Small bending axis spacing | 600mm |
| Short length of curved side | 60mm |
| Overall dimensions | 12*1.5*1.6m |
| power | Total power 17.5KW (actual power consumption 5KW/h), 380V, 50-60Hz |
| Reinforcement bar diameterΦ | D10 D12 D16 D18 D20 D25 D32 D36 |
| Processing count | 6 5 4 3 2 1 1 1 |
| The processing efficiency per shift (8 hours) is about 30 tons of rebarFeatures | |
1. Intelligent operation and modular input minimize operator requirements.
2. Easy adjustment of processing length and angle.
3. Servo PLC control and computer programming, capable of storing hundreds of patterns.
4. Bidirectional CNC mobile bending, with independent movement of the single head.
5. High production efficiency, with an average daily processing capacity of 5,500 pieces per person, replacing 22 workers, more than 10 times the output of traditional processing equipment, reducing labor costs.
6. The machine is equipped with 485 communication and internet connectivity, allowing real-time monitoring of production output and working hours.
Operation Procedure
1. Turn on the CNC machine and turn the power switch to the “ON” position.
2. Access the machine control system interface.
3. Find the “Angle Adjustment” option or related parameter setting options on the control system interface.
4. Select the two angles in opposite directions according to the angle you want to adjust.
5. Enter or adjust the relevant parameters to accurately set the desired angle.
6. After confirming that the adjusted parameters are correct, save the settings.
7. Press the Start button. The machine will then bend the rebar according to the set angle parameters.
